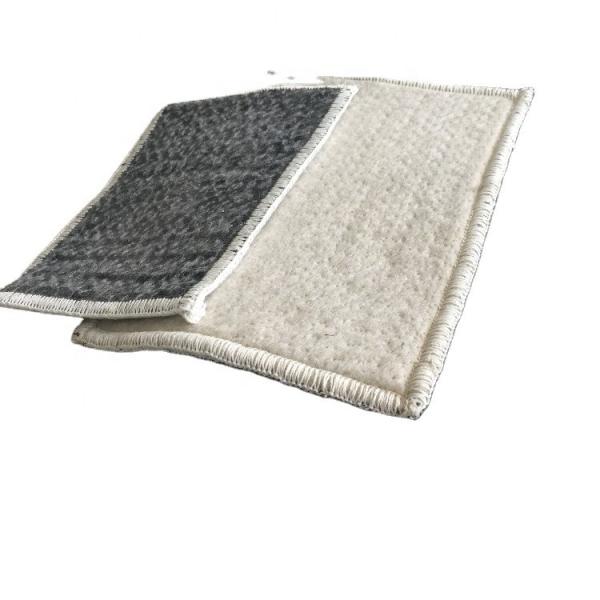

Artificial Lake Sealing Bentonite Material Clay Liner GCL Geosynthetic Drainage Liner

Name: Artificial Lake Sealing Bentonite Material Clay Liner GCL Geosynthetic Drainage Liner
Brand: TAIAN HONGYUAN
Price: 1.96 USD

Artificial Lake Sealing Bentonite Material Clay Liner GCL Geosynthetic Drainage Liner Manufactures

Warranty : Lifetime

After-sale Service : Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability : graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application : Outdoor, Artificial Lake Waterscape

Design Style : Modern

Place of Origin : Shandong, China

Brand Name : TAIAN HONGYUAN

Model Number : GCL-3

Specification : 4000G-6800G

Material : Bentonite

Product name : GCL (Geosythetic Clay Liners)

Type : Waterproof Membrane

Keyword : Geo Synthetic Pond Liner Bentonite

Usage : Waterproof Projects

Certificate : ISO9001

Function : Waterproof

Weight : 4000-6000g/m2

Item name : Bentonite Material Clay Liner GCL

Packaging Details : waterproof film

Port : QINGDAO

Supply Ability : 20000 Square Meter/Square Meters per Day

MOQ : 1000 square meters

Price : $1.96/square meters >=1000 square meters

Contact Now

Products Description

Artificial Lake Sealing Bentonite Material Clay Liner GCL Geosynthetic Drainage Liner

GCL

Geosynthetic clay liner (GCL) is composed of high dilatability of sodium base bentonite filling between the special composite geotextile and nonwoven fabric. It made by the method of acupuncture or suture composite impervious material. Use acupuncture into GCL can form many small fiber space, make the bentonite particles can't flow in one direction, when under the influence of water within the mat forming uniform density of colloidal waterproof layer, prevent the leakage of water.GCL Geosynthetic Drainage Liner Bentonite Composite Waterproof Blanket Geomembrane Clay Liner for Artificial Lake Lining

Projects/ Technical data	GCL-NP Technical Indicators
Weight per unit area(g/m2)	more than 4000gsm and no less than specified value
Bentonie swell index(ml/2g)	≥24
Ethylene blue absorption(g/100g)	≥30
Tensile strength (N/100mm)	≥600
Racking strength(N/100mm)	≥40
Elongation at max load(%)	≥10
Permeability(m/s)	≤5.0x110^(-11)
Anti-static water pressure	0.4Mpa,1h,not seepage
Filtration loss (ml)	≤18
Bentonite durability (ml/2g)	≥20

Product characters

1. Environment friendly
2. Permanent waterproof, excellent performance
3. Easy to construct
4. Strong Self-Restore Capacity

Application Scenarios

1. The landfill anti-seepage closed treatment engineering.
2. The waterscape engineering and artificial landscape engineering.
3. The underground tank seepage control engineering. 4. Channel, the canal seepage control engineering.
5. The reservoir seepage control engineering (pool).
6. The subway engineering.
7. The tunnel engineering.
8. The underground structure and waterproof engineering such as underground foundation.

landfill

basement

Artificial lake

Sri Lanka Construction

Packing & Delivery

FAQ

1. who are we?
We are based in Shandong, China, start from 2010,sell to Domestic Market(50.00%),South America(30.00%),Southeast Asia(10.00%),Mid
East(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
bentonite mat,swellable mat,bentonite waterstop strips,geomembrane,geotextile

4. why should you buy from us not from other suppliers?
Hongyuan International Co., Ltd is one industrial and trading enterprise, with the production intelligence of geomembrane,
geotextile, GCL(Geosynthetic clay liners) and geotechnical materials.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
